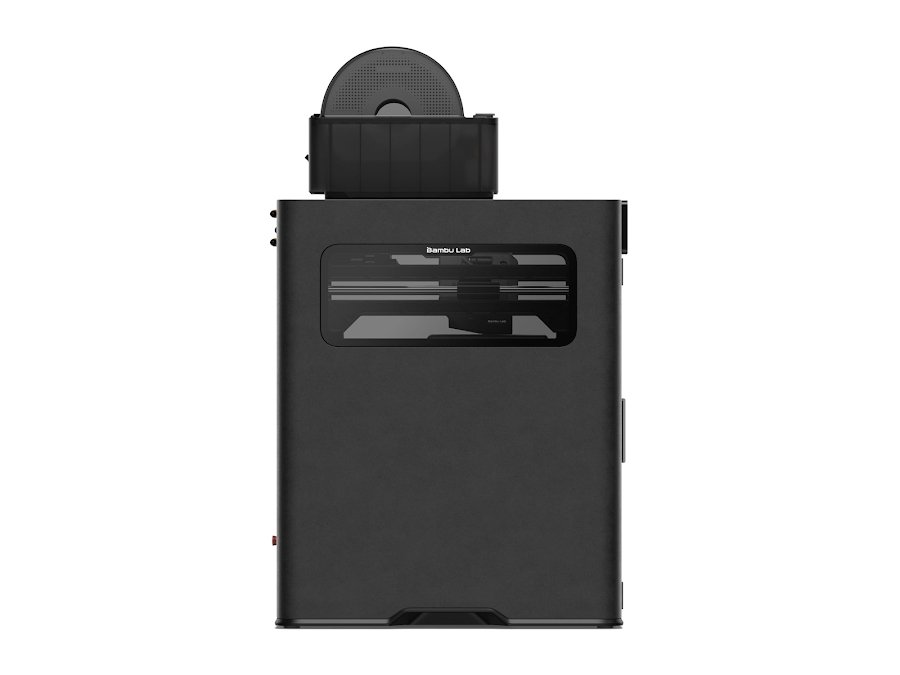

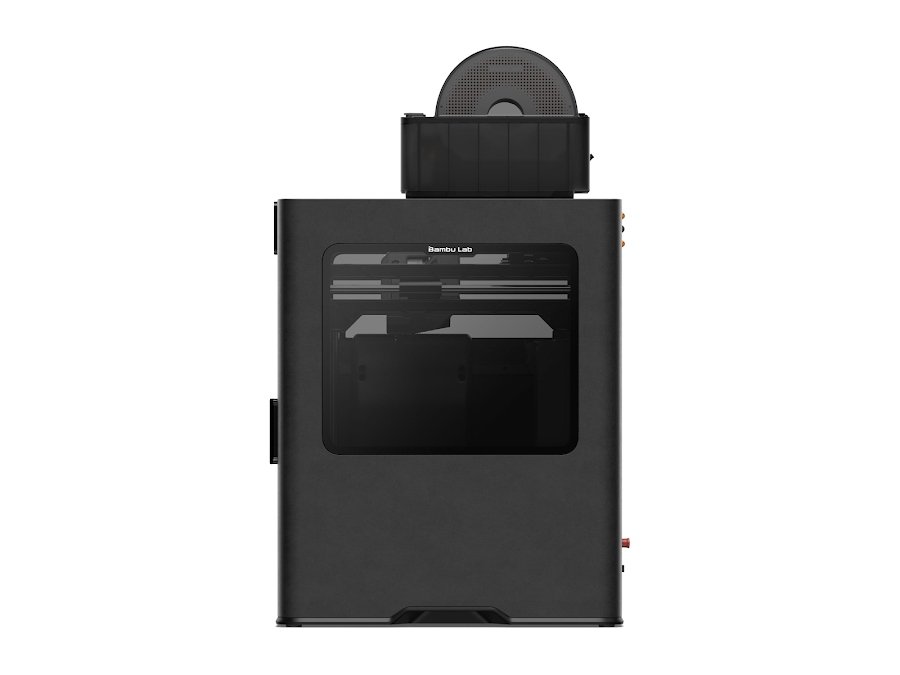

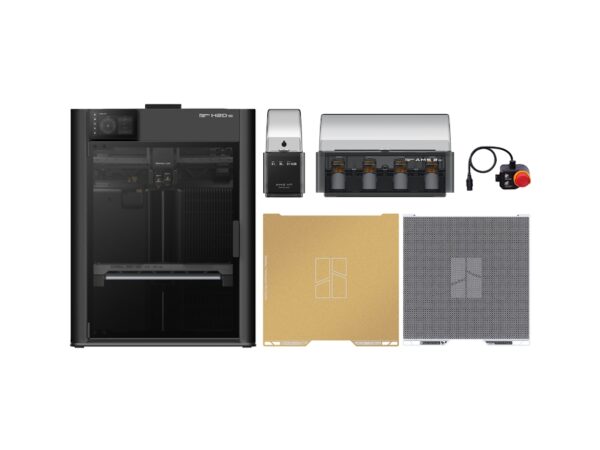

Experience superior production results with the Bambu Lab H2D Pro 3D Printer—engineered for professionals who demand quality, security, and reliability. Unlock advanced high-temperature material versatility, seamless enterprise integration, and increased productivity with outstanding print quality. Featuring a 350°C dual-nozzle system, secure Ethernet and WPA2-Enterprise connectivity, Vision Encoder Calibration, and more, the H2D Pro empowers your organization to achieve exceptional 3D prints with confidence and efficiency.
Key Features of the Bambu Lab H2D Pro 3D Printer:
- 350°C dual-nozzle system for advanced material versatility
- Tungsten carbide nozzle for exceptional durability and lifespan
- 65°C heated chamber ensures strong, warp-free prints
- Secure Ethernet and WPA2-Enterprise Wi-Fi connectivity options
- Physical network killswitch meets strict enterprise security standards
- Included Vision Encoder delivers ultra-precise 50µm motion accuracy
- Adaptive air circulation and HEPA filtration for safer environment operation
- Includes an emergency button to meet industrial safety requirements
SPECIFICATIONS
GENERAL | |
|---|---|
| Technology | Fused Deposition Modeling (FDM) |
| Motion System | CoreXY |
| Assembly | Fully-Assembled |
| Made in | China |
MACHINE DIMENSIONS | |
| Outer Dimensions (w/o AMS)* (L × W × H) | 492×514×626mm (19.4″×20.2″×24.6″) |
| Net Weight (w/o AMS)** | 31kg (68.4lb) |
PRINTING PARAMETERS | |
| Build Volume (L × W × H) | SINGLE Extrusion 325mm × 320mm × 325mm (12.79″×12.59″×12.79″) DUAL Extrusion Total Volume for Two Nozzles |
| Filament Diameter | 1.75mm |
| Extrusion | Dual Extrusion |
| Extruder Motor | Bambu Lab High-precision Permanent Magnet Synchronous Motor |
| Extruder Gear | Hardened Steel |
| Hotend | All-Metal |
| Nozzle Material | Tungsten Carbide Nozzle |
| Max. Nozzle Temperature | 350°C |
| Nozzle Size | 0.4mm |
| Max Build Plate Temperature | 120°C |
| Build Surface | Flexible Textured PEI Plate OPTIONAL |
| Max Toolhead Speed | 1000mm/s |
| Max Toolhead Acceleration | 20,000mm/s² |
| Max Flow Rate (Standard Flow Hotend) | 40mm³/s* |
| Active Chamber Heating | Supported |
| Max Chamber Temperature | 65°C |
| Pre-Filter Grade | G3 |
| HEPA Filter Grade | H12 |
AIR PURIFICATION | |
| Activated Carbon Filter Type | Granulated Coconut Shell |
| VOC Filtration | Superior |
| Particulate Matter Filtration | Supported |
COOLING | |
| Part Cooling Fan | Closed Loop Control |
| Cooling Fan for Hotend | Closed Loop Control |
| Main Control Board Fan | Closed Loop Control |
| Chamber Exhaust Fan | Closed Loop Control |
| Chamber Heat Circulation Fan | Closed Loop Control |
| Auxiliary Part Cooling Fan | Closed Loop Control |
PRINTER FEATURES | |
| Enclosed | Yes—Plastic & Glass |
| Frame | Aluminum and Steel |
| Filament Cutter | Built-In |
| Build Plate | Magnetic, Flexible |
| Bed Leveling | Fully-automated |
| Emergency Button | ✓ |
| Swappable Nozzle System | ✓ |
| Power Loss Recovery | ✓ |
CAMERA(S) | |
| Live View Camera | Built-in; 1920 × 1080 |
| Nozzle Camera | Built-in; 1920 × 1080 |
| BirdsEye Camera | Built-in; 3264 × 2448 |
| Toolhead Camera | Built-in; 1920 × 1080 |
SENSOR(S) | |
| Door Sensor | Supported |
| Filament Runout Sensor | Supported |
| Filament Tangle Sensor | Supported |
| Filament Odometry | Supported with AMS |
COMPATIBLE MATERIALS | |
| Third-Party Filament | Yes*** |
| Supported | PLA, PETG, TPU, PVA, BV OH, ABS, ASA, PC, Nylon / PA, PET, PPS, PPA, and Carbon/Glass Fiber Reinforced Filament variants of the previously listed materials |
COMMUNICATION | |
| Display | 5″ Capacitive Touch Screen |
| Display Resolution | 720 × 1280 |
| Storage | Built-in 8 GB EMMC and USB Port |
| Control Interface | Touchscreen, mobile App, PC App |
| Motion Controller | Dual-core Cortex-M4 and Single-core Cortex-M7 |
| Applicator Processor | Quad-core 1.5 GHz ARM A7 |
| Neural Processing Unit | 2 TOPS |
NETWORK CONTROL | |
| Connectivity | Wi-Fi, Ethernet |
| Network Kill Switch | Wi-Fi & Ethernet |
| Wi-Fi Frequency Range | 2400 MHz – 2483.5 MHz |
| Wi-Fi WPA2-Enterprise | EAP-PEAP EAP-TLS TAP-TTLS |
| Wi-Fi Transmitter Power (EIRP) | ≤ 21.5 dBm (FCC) ≤ 20 dBm (CE/SRRC) |
| Wi-Fi Protocol | IEEE 802.11 b/g/n |
| Ethernet Socket | RJ45 |
| Ethernet Speed | 100 Mbps / Full Duplex |
| Removable Network Module | Yes |
| 802.1X Network Access Control | Yes |
SOFTWARE | |
| Slicing Software | Bambu Studio Supports third-party slicers which export standard |
| Compatible OS | Windows, MacOS |
| Supported File Format(s) | STL, 3MF |
POWER REQUIREMENTS | |
| Input Voltage | 100 – 120 VAC / 200 – 240 VAC, 50/60 Hz |
| Max Power** | 1320 W@110 V 2200 W@220 V |
| Average Power | 1050 W@110 V 1050 W@220 V |
