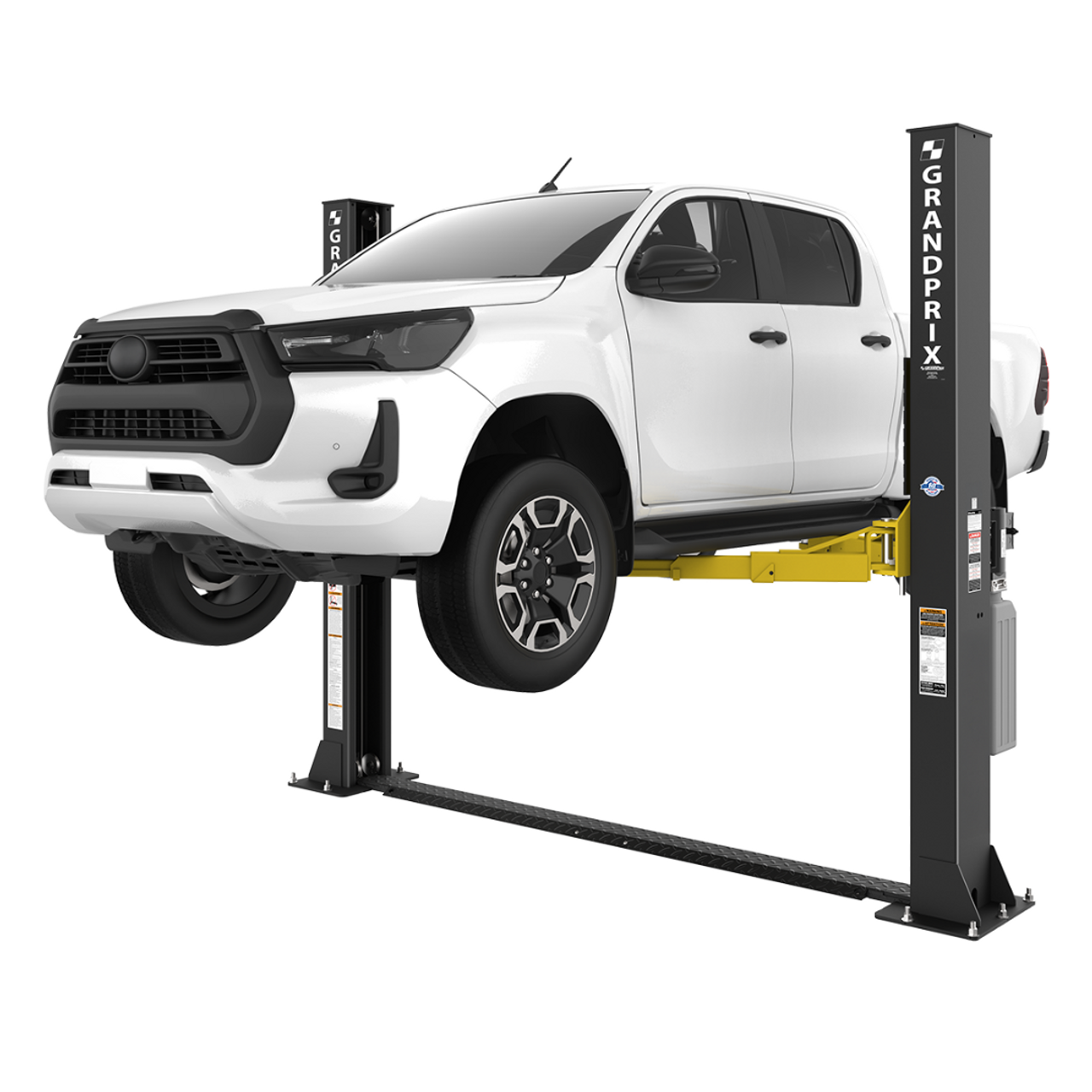

Bendpak GrandPrix GP-9LC 9,000 Lb. Capacity 2 Post Lift
The GrandPrix GP-9LC is a rugged 9,000-lb. capacity two-post lift built for low-ceiling garages and tough shop conditions. Its floorplate design removes overhead obstructions, while symmetric and asymmetric arm configurations provide flexible vehicle access. A proven chain-over system with industrial-grade leaf chain and heavy-duty rollers delivers smooth, reliable lifting backed by serious durability. With automatic safety locks, oversized base plates, and rock-solid construction, the GP-9LC is built to work as hard as you do.
Features
- 9,000-lb. lifting capacity.
- Symmetric and asymmetric arm design for enhanced versatility.
- Triple-telescoping front arms & dual-stage extended rear arms.
- Heavy-duty, high-strength leaf chain engineered for reliable lifting power and durability.
- Heavy-duty 6″ x 6″ tubular steel carriage for maximum strength.
- Electric-hydraulic power system for effortless operation.
- Oversized 20.5″ x 15.5″ base plate for increased stability.
- Self-lubricating UHMW polyethylene guide blocks for long-lasting durability.
- Safety locks in each column spaced every 3 inches.

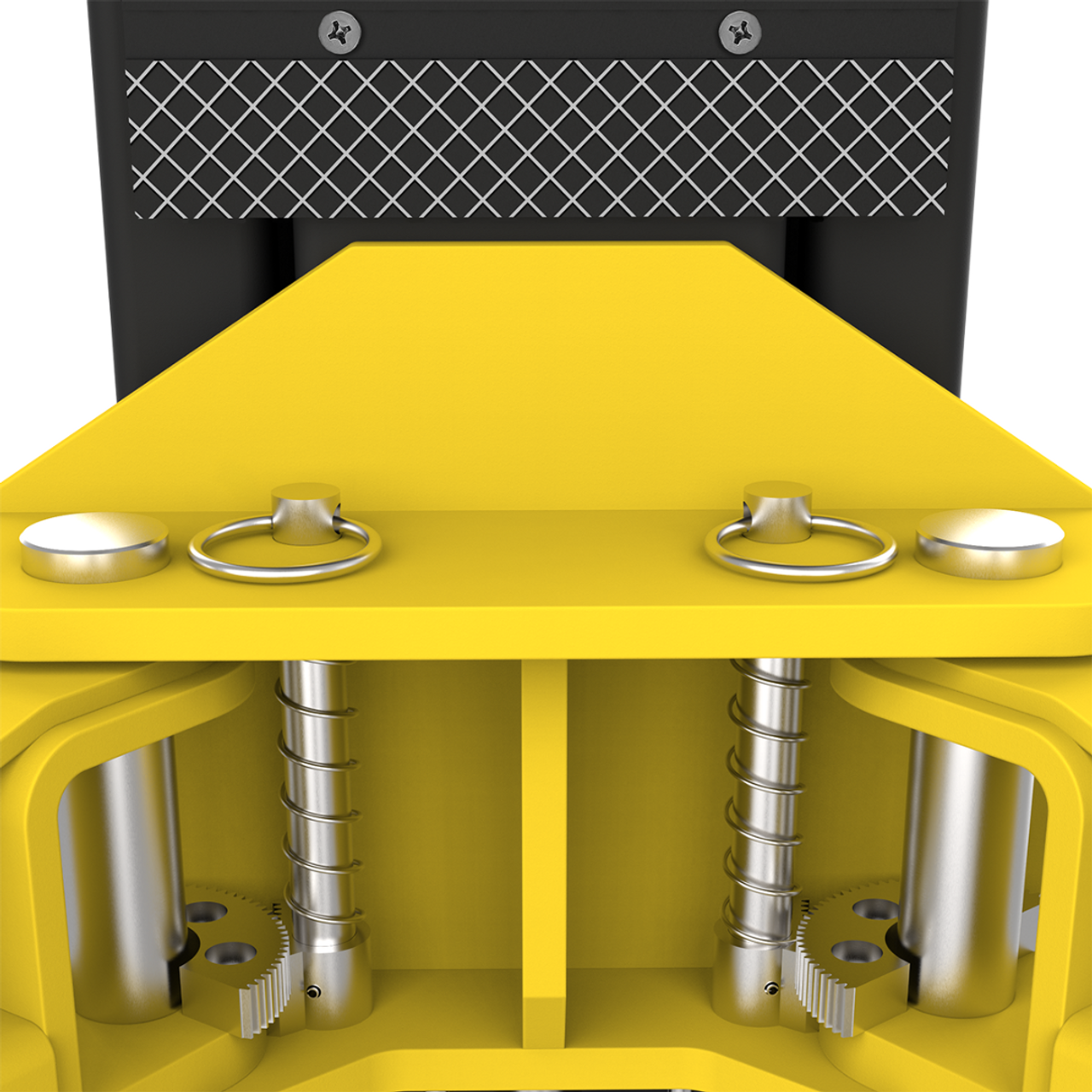

- Automatic arm restraints for enhanced safety.
- Heavy-duty 1/2″ aircraft-quality equalizer cables.
- Oversized cable sheaves to reduce cable fatigue.
- Double-telescoping screw pads feature tear-resistant polyurethane for long-lasting durability.
- Full size rubber carriage guard reduces door dings.
- 4-piece 63mm stackable adapter set included.
- 10-piece concrete wedge anchors included.
Specifications
| Lifting Capacity | 9,000 lbs. (4,082 kg) | | Max. Capacity / Front Axle | 4,500 lbs. (2,045 kg) | | Max. Capacity / Rear Axle | 4,500 lbs. (2,045 kg) | | A – Height Overall | 109.5″ (2,781 mm) | | B – Width Overall (at Baseplate) | 137.25″ (3,486 mm) | | C – Width Outside of Columns | 127.5″ (3,238 mm) | | D – Floor To Drive-over Height | 1.25″ (30 mm) | | E – Width Inside Columns | 113.5″ (2,880 mm) | | F – Front Arm Reach (Min.) | 22.5″ (571 mm) | | F – Front Arm Reach (Max.) | 43.25″ (1,099 mm) | | G – Rear Arm Reach (Min.) | 33.5″ (845 mm) | | G – Rear Arm Reach (Max.) | 53.25″ (1,353 mm) | | H – Min. Pad Height | 3.9″ (100 mm) | | I – Rise | 70″ (1,778 mm) | | J – Max. Lift Height (Pad + 63mm Adapt.) | 76.5″ – 78.5″ (1,943 – 1,994 mm) | | K – Drive-Thru Clearance | 103″ (2,618 mm) | | Screw Pad Adjustment | 2″ (51 mm) | | Motor | 220 VAC / 60Hz / 1 Ph | | Time of Full Rise | 65 seconds | | Max. Load Per Arm | 2,250 lbs. (1,023 kg) | | Shipping Weight | 1,385 lbs. (630 kg) |
|
