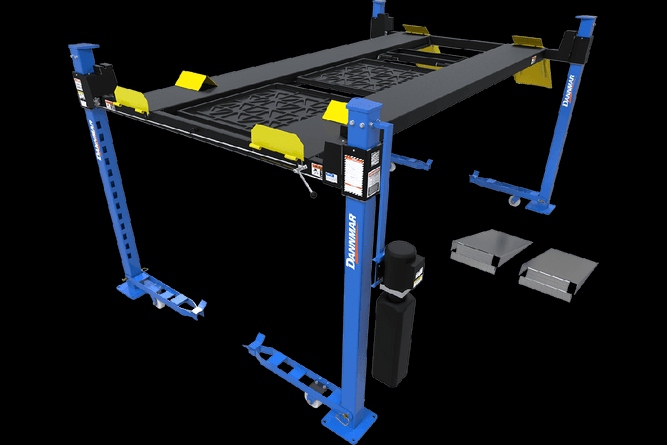

Dannmar’s D4-9 four-post lift delivers versatile productivity while allowing you to easily store project cars, classics, daily drivers, or even heavy pickup trucks. Dannmar’s D4-9 also comes standard with the accessories that most other car lift companies charge extra for. Mobile caster kits, drip trays, aluminum ramps, and more are all included. But a BIG plus of this four-post lift series is that you can store a vehicle raised above; and while having an open working space below. Dannmar’s D4-9 serves double-duty.
Features
- The D4-9 is designed to be fastened to the floor or free-standing.

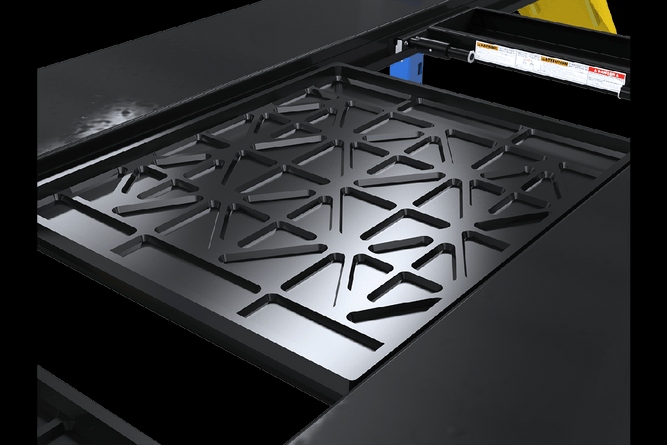

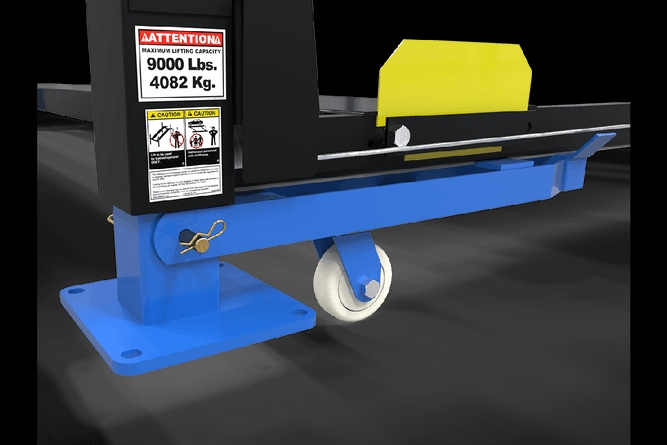

- Comes standard with a mobile caster kit, drip trays, mobile jack tray, aluminum approach ramps, and hardened steel tire.
- Boxed-steel columns are made from structural 4.75” x 4.75″ welded steel tubing.
- Columns feature 12” x 12” baseplates 5/8” thick.
- Manual dead-bolt locks are reliable and safe and are machined directly into the boxed-steel columns.
- 3/4″ thick steel safety locks are spring loaded for automatic and solid engagement.
- 13 positive locking positions are spaced every 4 inches.
- Secondary slack-cable lock system assures instant back-up safety lock engagement in the event of a cable failure.
- Exterior steel sleeves with UHMV slides surround each column to ensure positive contact and containment.

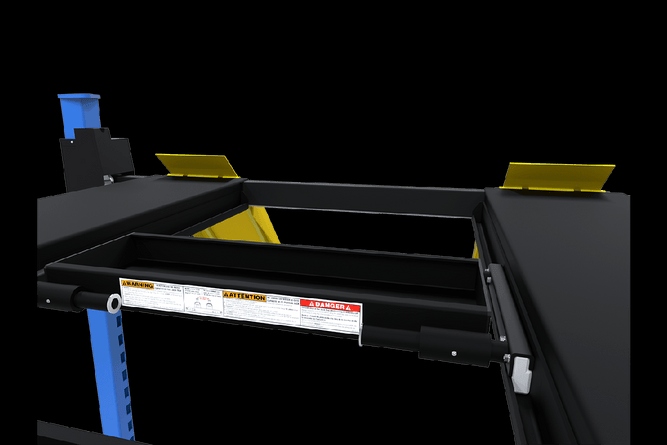

- Welded-steel runways feature utility rail for jack tray and drip trays and other accessories.
- Built-in flow restriction integrated into the hydraulic cylinder to prevent free-fall.
- Oversize baseplates and pull-perimeter cross tube sleeves reduce lateral movement and sway when lift is free-standing.
- Low-profile runways are only 5″ high to accommodate low ride-height vehicles.
- Hardened steel safety lock linkages use 3/8” molded carbon steel rod ends to reduce flex and twist to ensure positive locking and smooth operation.
- Precision, reinforced rod ends with spherical bearings are protective coated for corrosion resistance and are designed to provide low friction and high wear resistance.
- 5/8″ thick top caps.
- Pull out tire stops on both ends of the lift that allows drive through capability.
- Stainless steel lifting cables are rated to handle over 14,000 lbs. each.
- Pre-assembled cables simplifies installation.

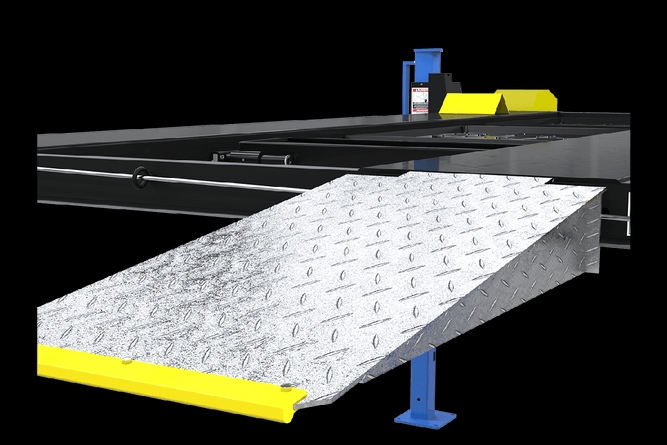

- 36″ aluminum approach ramps are gusseted to eliminate flex and bending.
- 3/4″ runway bolts provide positive attachment with increased safety factor.
- Optional full-length aluminum platforms can be added to easily store lawnmowers, ATVs, jet skis or motorcycles.
| Lifting Capacity | 9,000 lbs. (4,082 kg) |
| A – Min. Runway Height | 5” (127 mm) |
| B – Max. Rise | 70” (1,778 mm) |
| C – Max. Lifting Height | 75” (1,905 mm) |
| D – Height of Columns | 89” (2,261 mm) |
| E – Drive-Thru Clearance | 86” (2,184 mm) |
| F – Overall Width | 114.5” (2,908 mm) |
| G – Width Between Columns | 98” (2,489 mm) |
| H – Overall Length | 203” (5,156 mm) |
| I – Outside Length | 176.5” (4,483 mm) |
| J – Width Between Runways | 37.5” (953 mm) |
| K – Runway Centerline | 53.75” (1,365 mm) |
| L – Outside Edge of Runways | 72.5” (1,842 mm) |
| M – Runway Width | 18.75” (476 mm) |
| N – Length of Runways | 165.5” (4,204 mm) |
| Min. Wheelbase @ Rated Capacity | 115” (2,921 mm) |
| Min. Wheelbase @ 75% Capacity | 100” (2,540 mm) |
| Min. Wheelbase @ 50% Capacity | 85” (2,159 mm) |
| Min. Wheelbase @ 25% Capacity | 70” (1,778 mm) |
| Locking Positions | 13 (spaced every 4” / 102 mm) |
| Time to Full Rise | 60 seconds |
| Motor | 110VAC, 50-60HZ, 1PH, 20A or 208-230VAC, 50-60HZ, 1PH, 25A |
| Shipping Weight | 1,188 lbs. (538.9 kgs) |
| Shipping Dimensions | 166″ x 22″ x 41″ (4,216 mm x 558 mm x 1,041 mm) |
