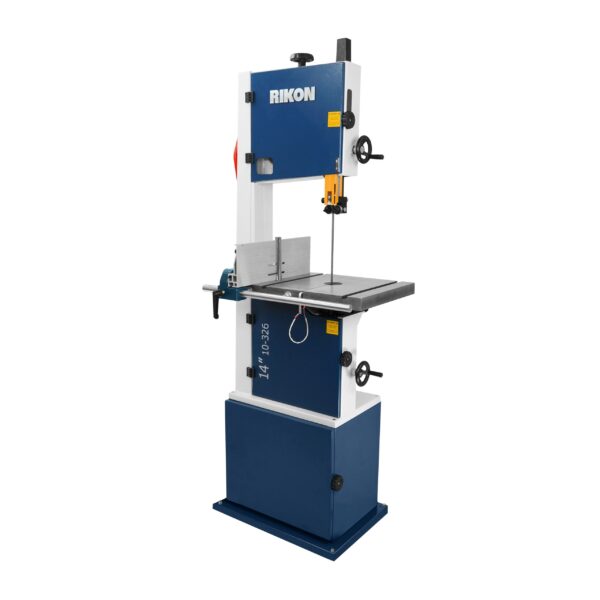

Model 10-326: 14″ Deluxe Bandsaw
Original price was: $1,359.99.$727.20Current price is: $727.20.
13″ Cutting Capacity

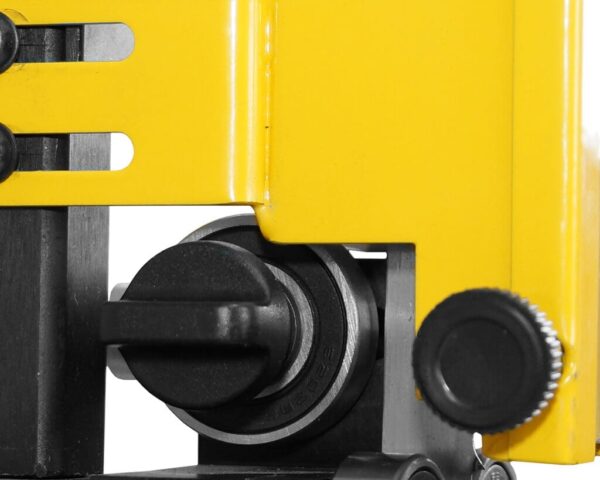

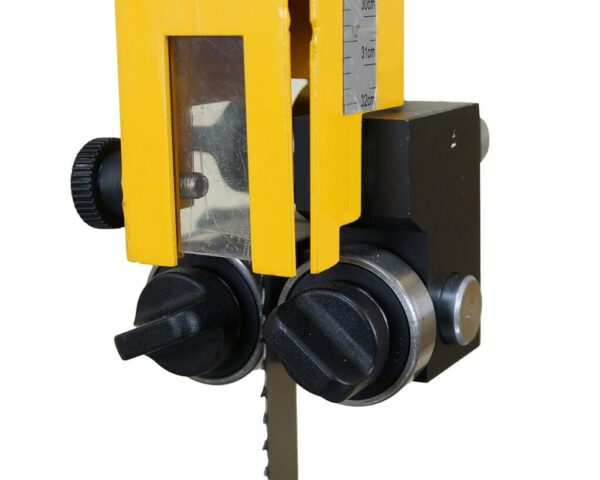

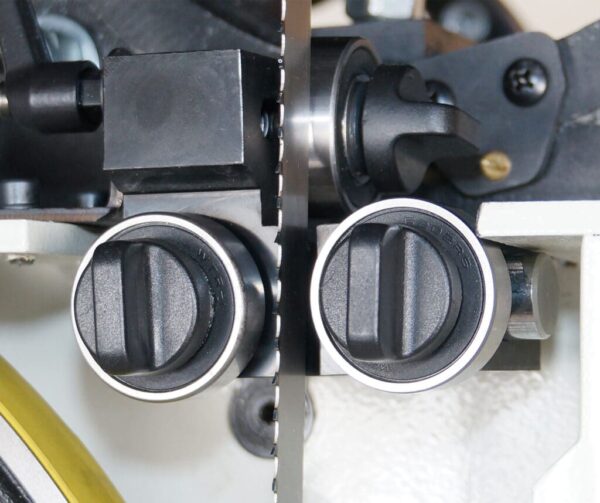

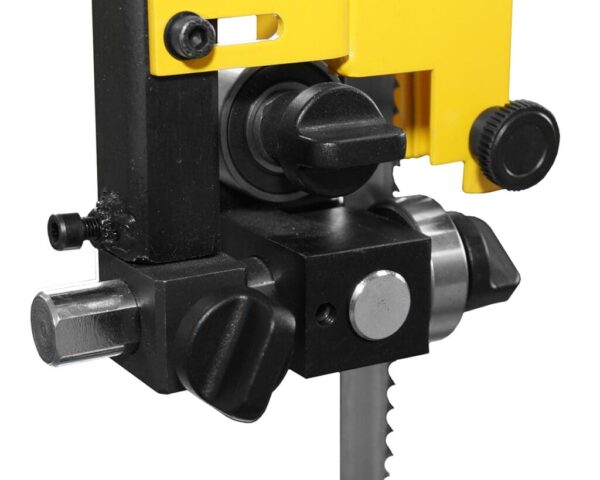

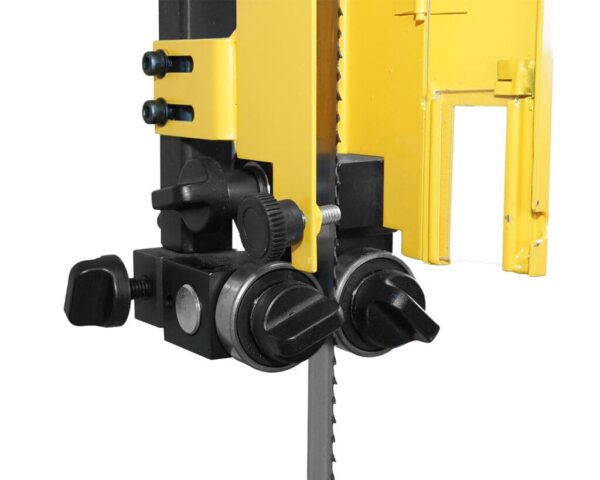

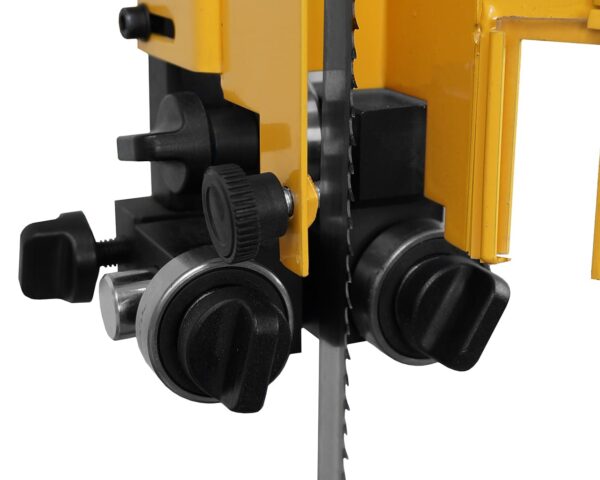

• Patented – Spring Loaded Tool-less Guide System

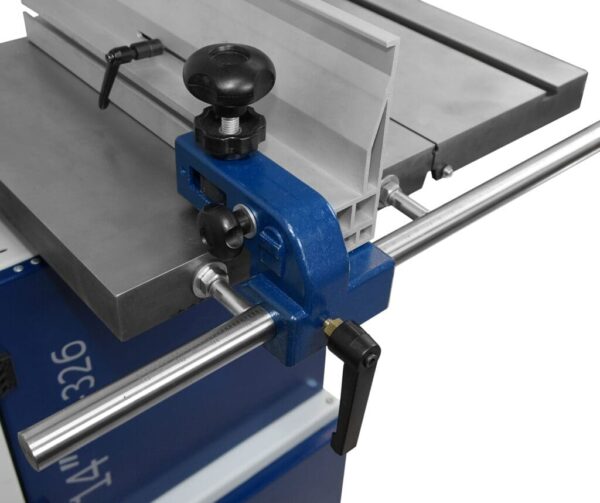

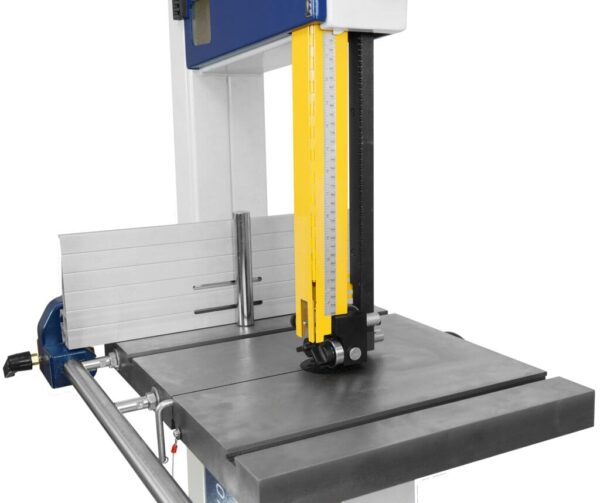

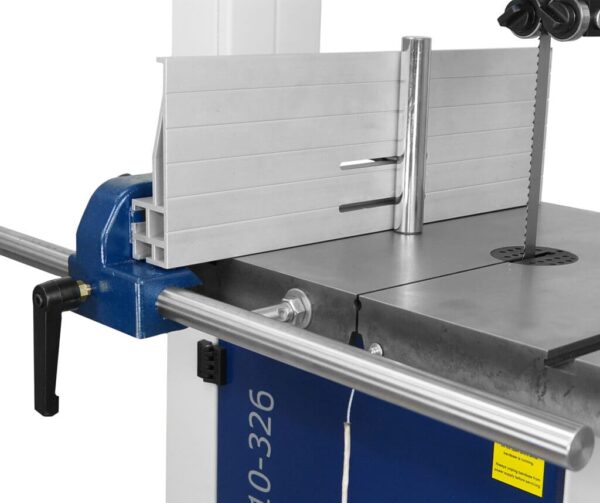

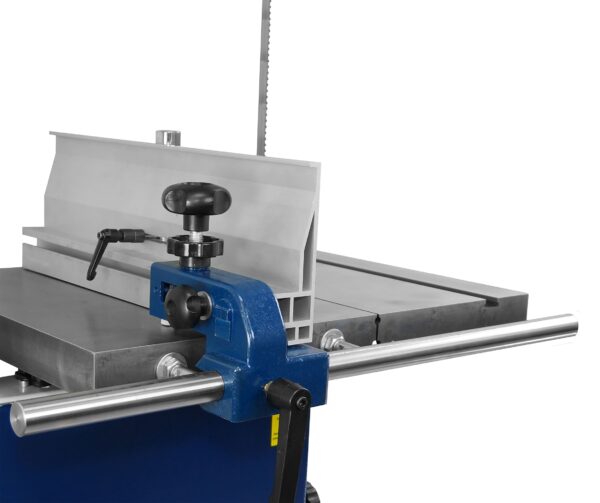

• Patented – Quick Adjust Fence System With 6″ Tall Rip Fence

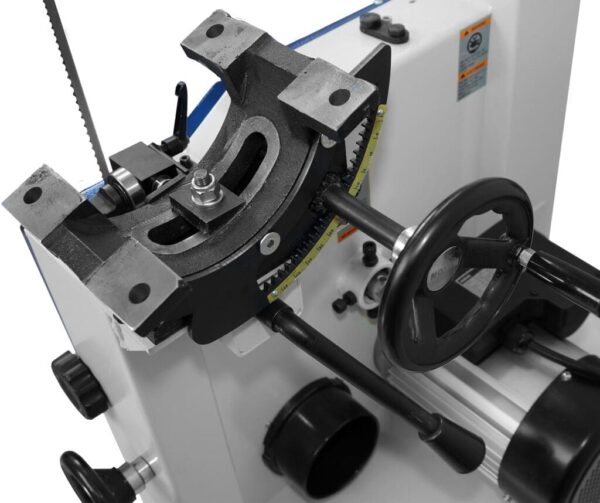

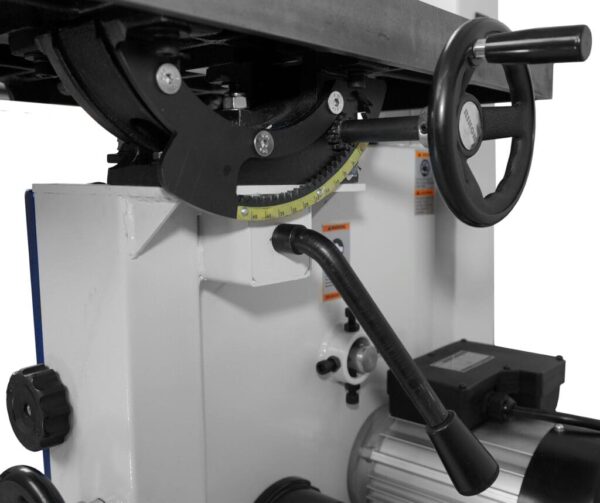

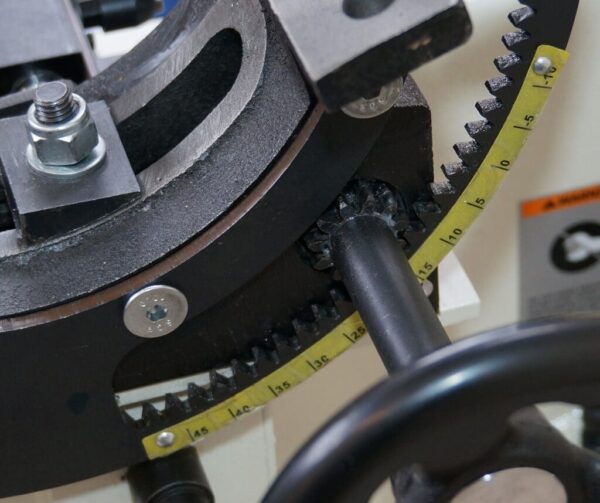

• Patented – Quick Lock Cast Iron Trunnion System
• 2 Speeds 1,445 / 2,950 FT / MIN.
• Large Cast Iron Table

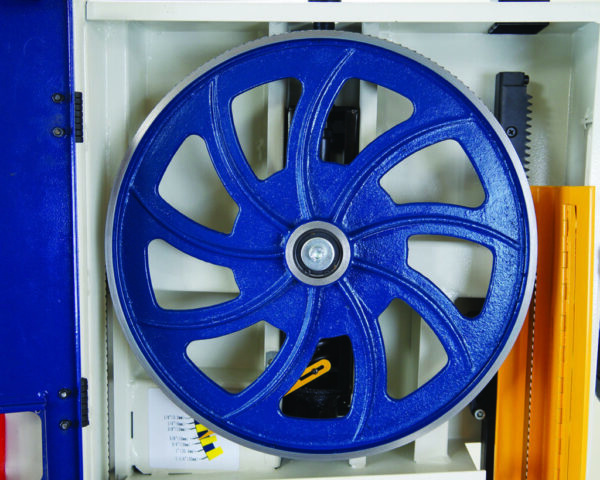

• Balanced Cast Iron Wheels
14” Bandsaw #10-326 is RIKON’s newest model with many Patented features that professionals will enjoy – including spring-loaded tool-less blade quides, quick-adjust fence system and quick-lock trunnion table
[show_more more=”» Read More” less=”» Read Less” color=”#0f70e8″]angling system, plus, a quick release blade tension lever, large adjustment handles, hinged safety blade guard with sight window, high work table height, and storage cabinet base. Its dual voltage, 1-3/4HP motor provides ample power for most every work encountered. Designed with two speed options – just change the drive belt on the pulleys to change from fast to a slower blade speed. Includes 6” tall rip fence with re-saw bar. Wired for use with 3-wire 120V receptacles.
Tech Specs
| Motor Horsepower | 1-3/4 HP TEFC |
| Motor Amps | 14/7 |
| Motor Volts | 115/230V, 60Hz, 1Ph |
| Blade Speed | 1,445/2,950 FT/MIN |
| Cutting Capacity Height | 13” |
| Cutting Capacity Width | 13-5/8” |
| Blade Width | 3/16” – 3/4” |
| Blade Length | 111” |
| Table Size | 21-1/2” x 15-3/4” |
| Table Left Tilt | -7° |
| Table Right Tilt | 45° |
| Table Miter Gauge “T” Slot | (2) 3/4” x 3/8” |
| Table Height to Floor | 40-1/2” |
| Table Height to Base | 20-7/8” |
| Table Fence Size | 18-3/4” x 1-3/4” x 6” |
| Wheel Material | Cast Iron |
| Blade Guide Type | Spring Loaded |
| Table Trunnion | Cast Iron |
| Overall Height | 74-1/2” |
| Overall Width | 33-3/4” |
| Overall Depth | 25” |
| Overall Base Size | 24” x 17-5/8” |
| Dust Port | 1@4” |
| Overall Net Weight | 285 lbs. |
| Warranty | 5 Years |
