| Engine power |
24 hp
|
17.9 kW |
|
|
|
| Engine model number |
44 EXi |
|
|
|
| Forward speed |
0-7 mph
0-11.3 km/h |
|
|
|
| Front caster tires |
11×6-5 |
|
|
|
| Drive tires |
20×10-8 |
|
|
|
| Seat back height |
High back with optional armrests, 18 in.
46 cm |
|
|
|
| Width of cut |
Accel Deep™ mower deck, 48 in.
122 cm
Accel Deep™ mower deck, 54 in.
137 cm |
|
|
|
| Mulching system |
Optional MulchControl™ attachment |
|
|
|
| Warranty |
3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
|
|
|
Key Specs
| Power |
24 hp
17.9 kW |
|
|
|
| Model number |
44 EXi |
|
|
|
| Displacement |
44.2 cu in.
724 cc |
|
|
|
| Cylinders |
V-twin |
|
|
|
| Lubrication |
Full pressure with replaceable filter, capacity, 2 U.S. qt
1.9 L |
|
|
|
| Type |
Overhead valve |
|
|
|
| Battery |
12 V
300 CCA |
|
|
|
| Choke/speed control |
Single lever |
|
|
|
| Cooling method |
Air |
|
|
|
| Fuel tank capacity |
3.0 U.S. gal.
11.4 L |
|
|
|
| Fuel gauge |
Translucent tank |
|
|
|
Engine
| Dual hydros |
Hydro-Gear EZT-D with 1-in. (2.5-cm) axles |
|
|
|
Drive train
| Forward speed |
0-7 mph
0-11.3 km/h |
|
|
|
| Reverse speed |
0-3.5 mph
0-5.6 km/h |
|
|
|
| Speed and direction control |
Twin levers |
|
|
|
| Control adjustment |
3 height, 11 positions |
|
|
|
Travel speed
| Frame |
Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing |
|
|
|
| Primer/paint |
E-coat/powder |
|
|
|
| Front caster tires |
11×6-5 |
|
|
|
| Front caster bearings |
Sealed ball bearings |
|
|
|
| Drive tires |
20×10-8 |
|
|
|
| Hour meter |
Yes |
|
|
|
| Service interval decal |
Yes |
|
|
|
| Storage compartment |
Optional covered |
|
|
|
| Cup holder |
Yes |
|
|
|
| Maximum towing capacity |
250 lb
113 kg |
|
|
|
Chassis
| Seat back height |
High back with optional armrests, 18 in.
46 cm |
|
|
|
| Fore-aft adjustment |
2.9 in.
7 cm |
|
|
|
| Seat suspension |
Two springs |
|
|
|
Seat
| Type |
Foot lift |
|
|
|
| Mower cut height |
1.25-4.5 in.
3-11 cm |
|
|
|
| Cut height increments |
0.25 in.
0.64 cm |
|
|
|
| Preset cut height |
Yes |
|
|
|
Lift system
| Width of cut |
Accel Deep™ mower deck, 48 in.
122 cm
Accel Deep™ mower deck, 54 in.
137 cm |
|
|
|
| Type |
Side discharge |
|
|
|
| Mower deck material |
10 gauge
0.135 in.
3.4 mm |
|
|
|
| Mower drive system |
V-belt |
|
|
|
Mower deck
| Type |
Electric, 105 lb-ft
142 Nm |
|
|
|
| Drive |
V-belt |
|
|
|
PTO
| Wheelbase |
49.4 in.
1255 mm |
|
|
|
| Overall length |
75.4 in.
1915 mm |
|
|
|
| Width without mower |
43.3 in.
1100 mm |
|
|
|
| Width with mower |
48A: 62.6 in.
1590 mm
54A: 68.5 in.
1740 mm |
|
|
|
| Width with mower (deflector raised for storage) |
48A: 52.8 in.
1340 mm
54A: 57.1 in.
1450 mm |
|
|
|
| Height |
42.5 in.
1080 mm |
|
|
|
| Weight |
48A: 594 lb
270 kg
54A: 605 lb
275 kg |
|
|
|
Dimensions
| Rollover protective structure (ROPS) |
No |
|
|
|
| Slope operating limit |
13 degrees; 10 degrees with Material Collection System |
|
|
|
| Operator presence system |
Yes |
|
|
|
| Park brake interlock |
Yes |
|
|
|
| Operator video |
Yes, online |
|
|
|
Operation
| Note 1 |
Durable Accel Deep Mower Decks are forged from 10-gauge steel with double captured mower wheels |
|
|
|
| Note 2 |
Easily change cut height from 1.25 to 4.5 in. (3 to 11 cm) using the foot lift and cutting height dial |
|
|
|
| Note 3 |
Integrated park brake is automatically applied when steering levers are stowed outward |
|
|
|
| Warranty |
3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
|
|
|
Buyer’s notes
| Mulching system |
Optional MulchControl™ attachment |
|
|
|
| Rubber floor mat |
Optional |
|
|
|
| Sun shade |
Optional |
|
|
|
| Mounted sprayer |
Not available |
|
|
|
| Protective cover |
Optional |
|
|
|
| Light kit |
Optional |
|
|
|

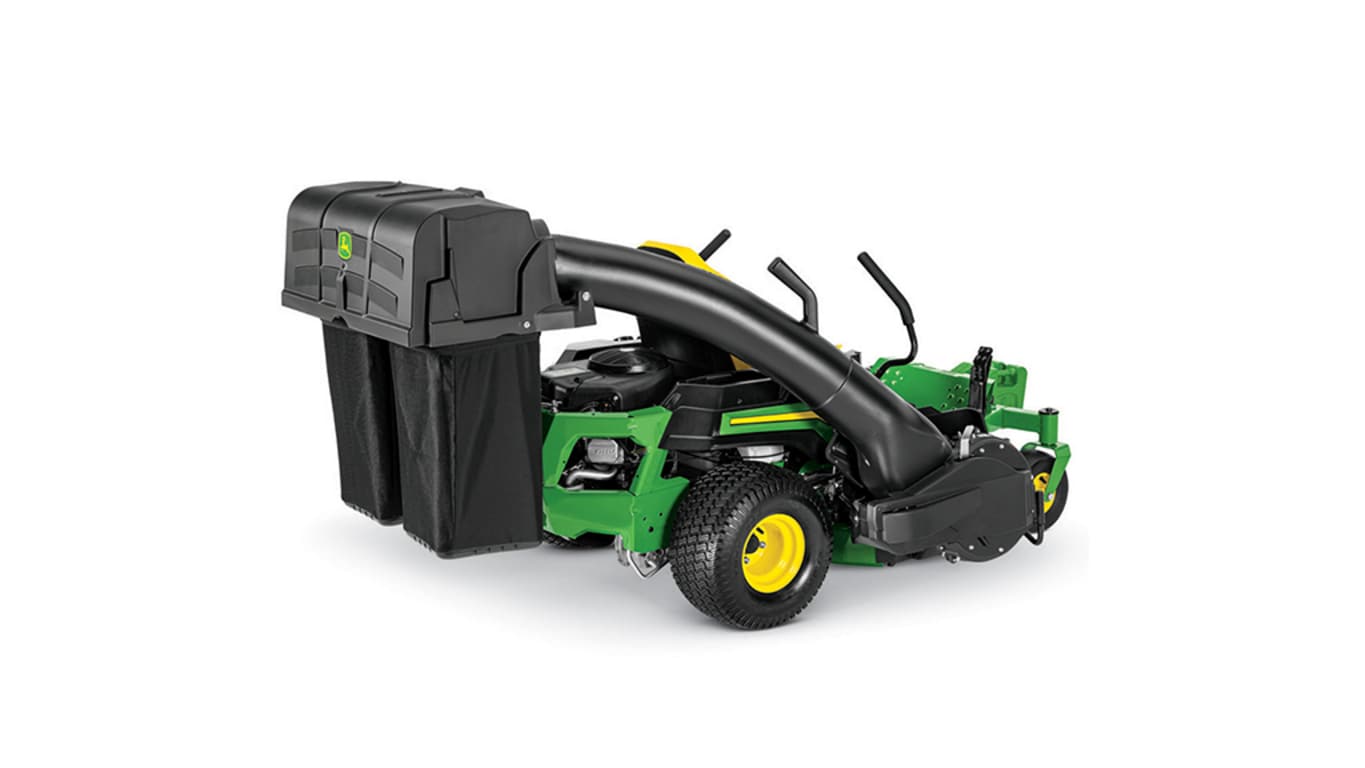

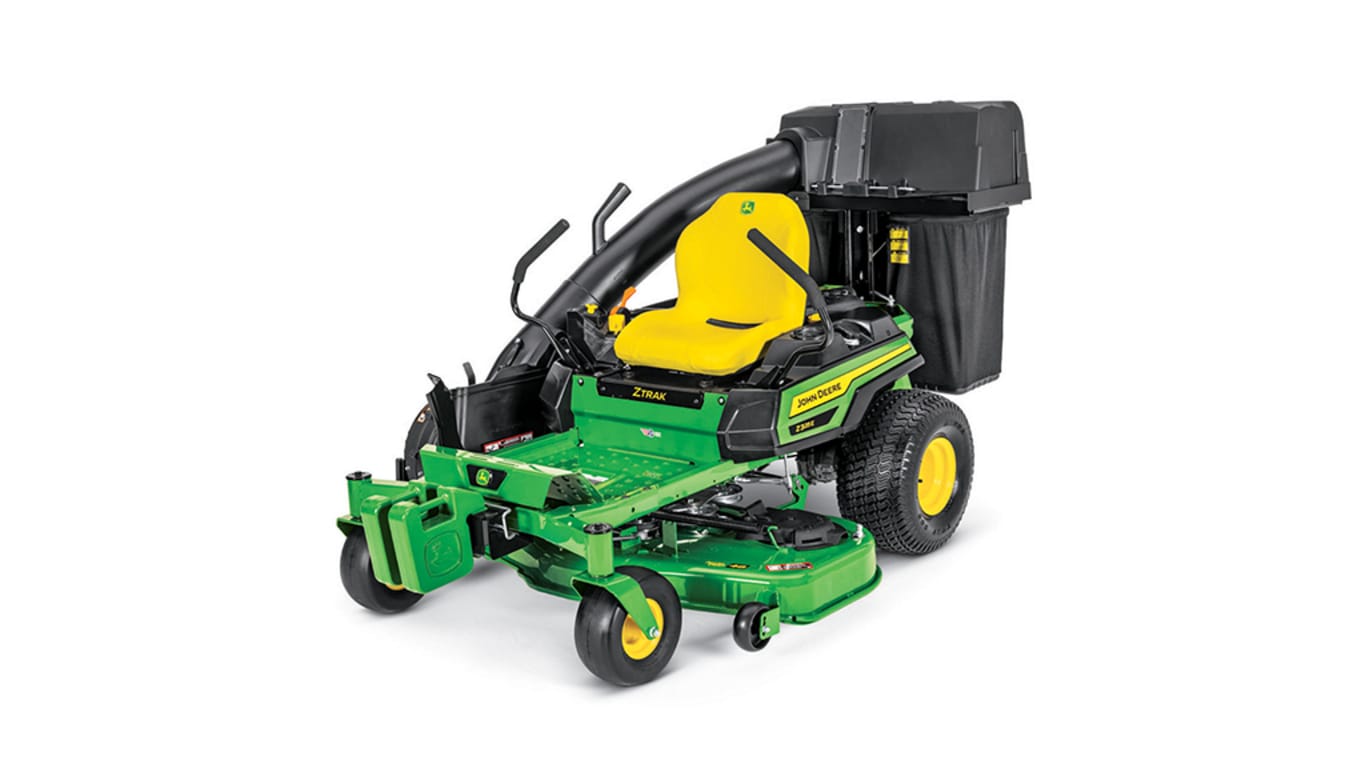

| Material collection system |
Two-bag Power Flow MCS, 6.5 bu
229 L |
|
|
|
Optional attachments
| Manufacturing location |
Greeneville, Tennessee, USA |
|
|
|
| Date collected |
3-Oct-22 |
|
