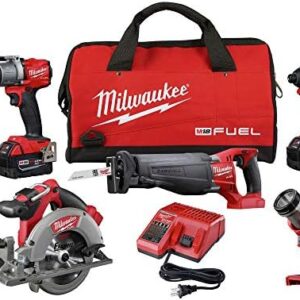

Milwaukee Electric Tools 2997-25 Fuel Combo Kit
Original price was: $849.15.$540.00Current price is: $540.00.
Vitacci Pentora Racing ATV
Original price was: $1,853.00.$1,058.40Current price is: $1,058.40.
Description
SPECIFICATION |
||||||||
SPECIFICATIONPARTS SPECIFICATION |
L×W×H | 1625*1060*1065 | ||||||
| WHEELBASE | 1090±20mm | |||||||
| FRONT WHEELBASE | 820mm | |||||||
| REAR WHEELBASE | 830mm | |||||||
| MINIMUM GROUND CLEARANCE | 135±15mm | |||||||
| SEAT HEIGHT | 790±15 mm | |||||||
| RIDE HEIGHT | 225mm | |||||||
| HANDLE HEIGHT | 1000mm | |||||||
| PACKING SIZE | 1460*880*860mm 62pcs/40HQ | |||||||
| MINIMUM TURNING CIRCLE DIAMETER | 5900±500mm | |||||||
| TURNING ANGLE | <45° | |||||||
| RATED LOAD | 100kg | |||||||
| NET WEIGHT | 149kg | |||||||
| GROSS WEIGHT (WITH PACKING) | 177kg | |||||||
| F&R BRAKE | F&R HYDRAULIC DISC | |||||||
| F&R BRAKE OPERATION TYPE | FRONT HAND BRAKE, REAR FOOT BRAKE | |||||||
| F&R RIM | 10*5.5AT/9*8.0AT | |||||||
| F&R TYRE | AT20*7.0-10/AT19*10-9 | |||||||
| TRANSMISSION | CHAIN | |||||||
|
TECHNICAL SPECIFICATION |
FUEL TANK |
9L` | ||||||
| BATTRY | 12V/7HA ` | |||||||
| MAXIMUM SPEED | 70km/h | |||||||
SPECIFICATION |
STARTING PERFORMANCE | 15S | ||||||
| CLIMBING PERFORMANCE | 21° | |||||||
| PARKING PERFORMANCE | ≥18° | |||||||
| EMISSION INDEX
|
CO (%) | ≤3.8 | ||||||
| HC(PPm) | ≤800 | |||||||
| db.(A) | ≤82 dB(A) | |||||||
ENGINE SPECIFICATION
|
MODEL | LC166FMM | ||||||
| TYPE | SINGLE CYLINDER、250cc air cooler 2 valves、4-STROKE | |||||||
| BRAND | LONCIN | |||||||
| BRORE×STROKE | 65.5×66.2mm | |||||||
| capacity | 223mL | |||||||
| COMPRESSION RATIO | 9.0:1 | |||||||
| MAX.POWER | 12（1±5%）kW /7500（1±5%）rpm | |||||||
| MAX.TORQUE | 17（1±5%）N · m /6000（1±5%）rpm | |||||||
| Min no load speed | 1500（1±10%） r /min | |||||||
| min fuel consumption rate | 354g / kw.h | |||||||
| Fuel no. | ≥RQ90 | |||||||
| CLUTCH METHOD | Manual | |||||||
| Start | Electrical start | |||||||
| cdi | C.D.I | |||||||
PARTS SPECIFICATION |
carb | PZ30 | ||||||
| Spark plug | D8TC | |||||||
| Front light | 12V18-18W | |||||||
|
TECHNICAL SPECIFICATION |
Max speed | 70km/h | ||||||
| Start time | 15S | |||||||
| break | ||||||||
| 前轮力和 | ≥60% | |||||||
| 前轮力差 | ≥55% | |||||||
| 后轮力和 | ≤20% | |||||||
| 后轮力差 | ≤24% | |||||||
| CLIMBING PERFORMANCE | 21°° | |||||||
| PARKING PERFORMANCE | ≥18% | |||||||
| EMISSION INDEX | CO (%) | ≤3.8 | ||||||
| HC(PPm) | ≤800 | |||||||
| db(A) | ≤82 dB(A) | |||||||
| Starting acceleration（S） | ≤8 | |||||||
| Speed acceleration（S） | ≤8 | |||||||
Parts spec |
Tank capacity | 9L | ||||||
| Fr. & re suspension | Oil dumper | |||||||
| Fr. &re suspension | L=350 m m /L=390 m m | |||||||
